Continuous targets

ContinuousOverlapIndex is the regression counterpart to the discrete-label estimator. It asks whether nearby feature prototypes contain compatible empirical target distributions, then calibrates the observed disagreement against shuffled target assignments.

from sklearn.preprocessing import MinMaxScaler
from overlapindex import ContinuousOverlapIndex

X = MinMaxScaler().fit_transform(X)

coi = ContinuousOverlapIndex(
    model_type="MiniBatchKMeans",
    kmeans_k=8,
    kmeans_kwargs={"random_state": 0},
    n_target_cells="auto",
    n_null_permutations=20,
    random_state=0,
).fit(X, y_regression)

print(coi.index)
print(coi.actual_loss_, coi.null_loss_)

The estimator is offline-first. MiniBatchKMeans, KMeans, and BallCover are supported; partial_fit refits on the supplied batch and does not retain continuous-target state across calls.

KMeans and MiniBatchKMeans also accept SciPy sparse feature matrices. Sparse inputs remain in CSR form through prototype fitting, adjacency scoring, and permutation-null refits; continuous targets remain dense numeric arrays.

random_state seeds target-cell construction, projection directions, permutation sampling, and the selected feature backend. An explicit random_state inside kmeans_kwargs or ballcover_kwargs takes precedence for that backend.

The fitting pipeline

1. Scale the continuous target columns according to target_scaling.

2. Partition target space into pseudo-label cells.

3. Fit label-owned feature prototypes using those cells.

4. Build prototype adjacency in feature space.

5. Measure disagreement between empirical target distributions on adjacent prototypes.

6. Compare actual loss with a permutation-null loss and aggregate local prototype indices.

The support-weighted calibration follows

\[ \text{index} = \operatorname{clip}\left( 1 - \frac{\text{actual loss}}{\text{null loss}}, 0, 1 \right). \]

Thus 1.0 represents no observed harmful overlap, values between 0.0 and 1.0 represent partial separation, and 0.0 represents complete or permutation-equivalent overlap. All reported local and aggregate values are bounded to [0, 1]. A loss_ratio_ above 1.0 identifies worse-than-null disagreement while the index remains at the lower endpoint.

Target cells and distances

Target shape	target_cover="auto"	target_distance="auto"
Univariate	Quantile cells	1D Wasserstein distance
Multivariate	KMeans cells	Sliced Wasserstein distance

n_target_cells="auto" resolves to a sample-size-dependent value between 8 and 64, capped by the number of samples. Too few cells can hide target structure; too many may leave cells and their feature prototypes poorly supported. For multivariate targets, set random_state and optionally target_cover_kwargs for reproducible KMeans cells.

target_scaling="standard" is the default. The alternatives are "none", "minmax", and "robust". Scaling is particularly important when multivariate target columns use different units.

Feature adjacency

The default adjacency_mode="soft_topk" spreads each sample’s competitor mass over up to top_k nearby non-own prototypes. feature_temperature controls the concentration: smaller values approach a single dominant competitor.

Use adjacency_mode="hard_top1" for strict single-competitor scoring or backwards comparisons. Keep adjacency settings constant when comparing representations.

Continuous behavior gallery

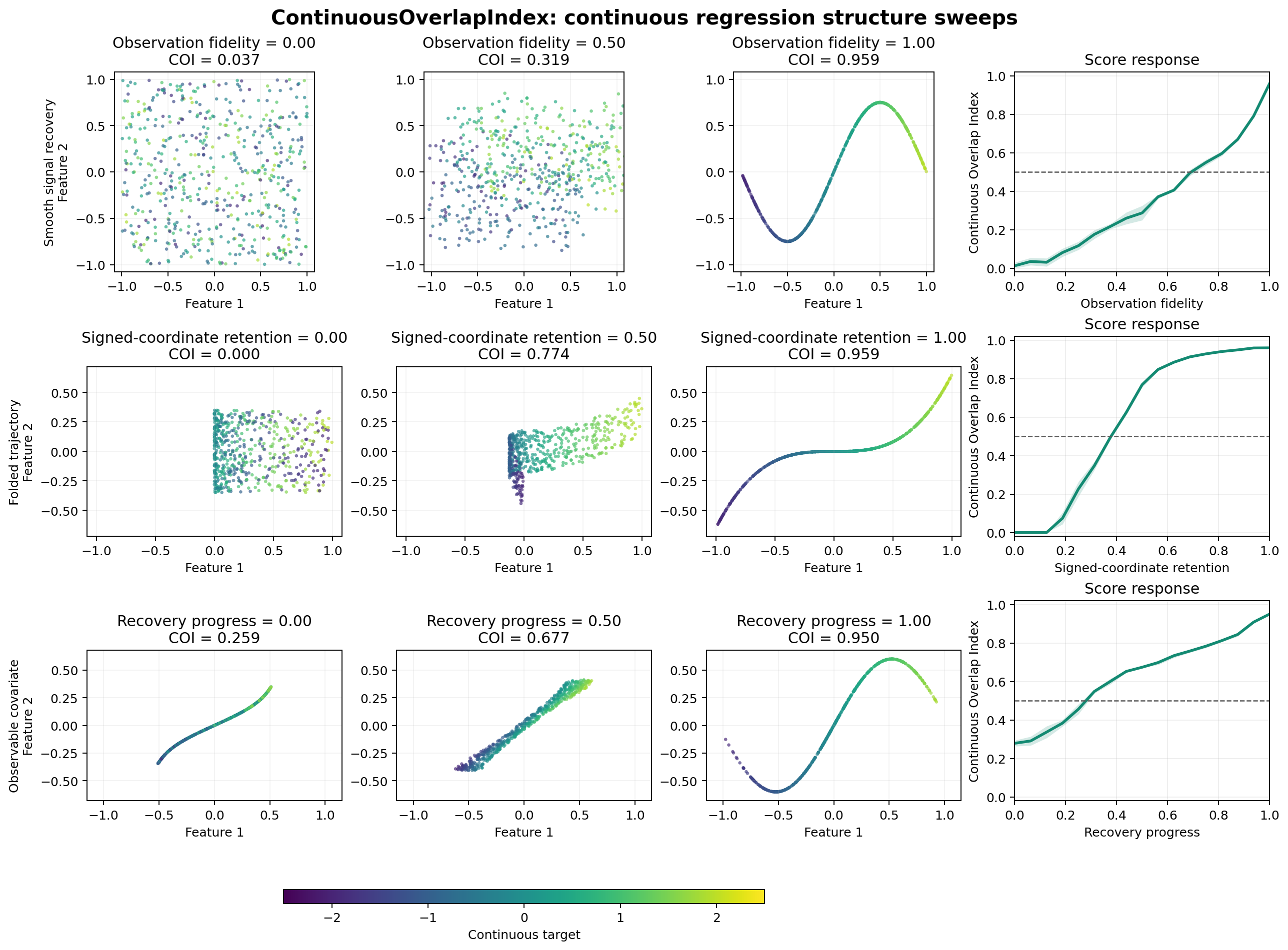

The main synthetic gallery follows three genuinely continuous regression problems: a smooth latent signal with increasing observation fidelity, a folded latent trajectory that is progressively unfolded in feature space, and a continuous covariate that is gradually recovered. It uses eight target cells, rather than reducing each problem to a high-versus-low split, and strict nearest-competitor adjacency so the ideal target-ordered endpoints approach the 1.0 anchor.

Regenerate it from the repository root with:

poetry run python examples/visualize_continuous_overlap_sweeps.py

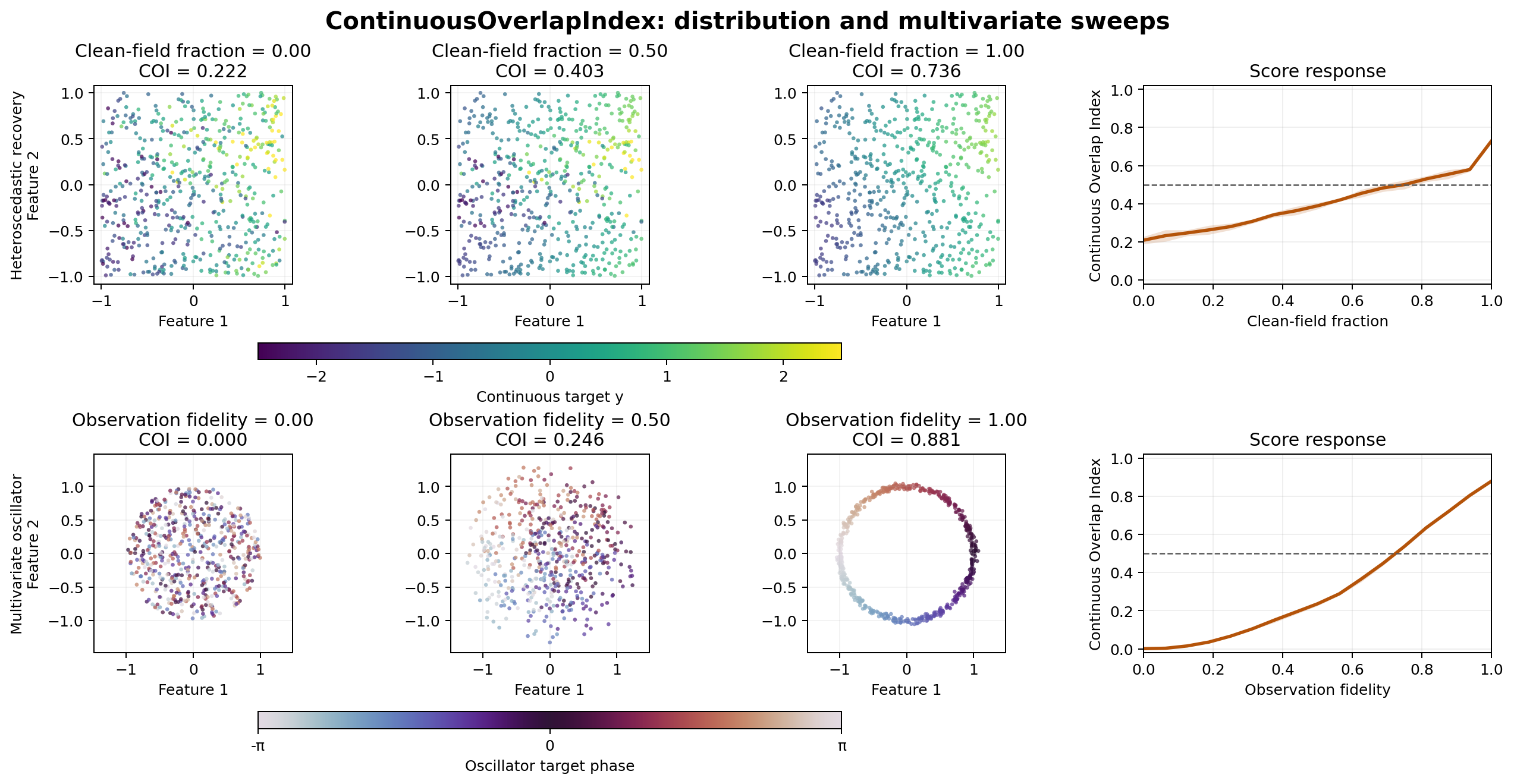

An additional gallery shows a heteroscedastic target field becoming cleaner and a multivariate oscillator target observed with increasing fidelity:

poetry run python examples/visualize_continuous_overlap_additional_sweeps.py

The example scripts use six refit permutations per score to keep the complete sweeps practical to reproduce. Increase n_null_permutations when adapting them for final quantitative reporting.

Permutation nulls

• null_mode="refit_permutation" rebuilds target cells and feature prototypes for every shuffle. It provides the strongest null semantics and is the best choice for final reporting when affordable.

• null_mode="fixed_structure_permutation" keeps fitted prototype geometry and shuffles targets across it. It is substantially faster but approximate.

• null_mode="auto" uses the refit mode when n_samples * n_null_permutations < auto_null_work_threshold, otherwise the fixed-structure mode. The default threshold is 100_000.

Inspect null_mode_ after fitting to see which mode actually ran. Increase n_null_permutations for a more stable null estimate, trading off runtime. null_loss_samples_ contains the individual draws.

Aggregation and diagnostics

aggregation="support_weighted" is the default, so index calibrates the support-weighted prototype loss. With aggregation="macro", index is the unweighted mean of the bounded prototype indices and macro_index_ contains the same value. The weighted_index property is always available regardless of the selected aggregation.

Useful fitted attributes include:

• actual_loss_, null_loss_, and loss_ratio_ for calibration.

• prototype_index_, prototype_loss_, and prototype_support_ for local diagnosis.

• prototype_target_values_, prototype_target_mean_, and prototype_target_cov_ for target summaries.

• prototype_adjacency_ and prototype_adjacency_normalized_ for the feature neighborhood graph.

• target_cell_ids_, target_cover_, and target_distance_ for resolved target-space choices.

The prototype target attributes retain empirical target measures rather than reducing every prototype to only a mean or variance. This is what allows the configured Wasserstein distance to compare richer local target distributions.

Continuous and discrete scores use related interpretation anchors but different calibrations. Do not directly compare an OI from one estimator with a COI from the other.

Calibration migration

The continuous calibration changed in the 0.1.3 alpha series. At the loss-ratio level, the new pre-bound calibration equals 2 * legacy_score - 1, after which values are bounded to [0, 1]. Historical and recalibrated COI values should not be compared directly.
